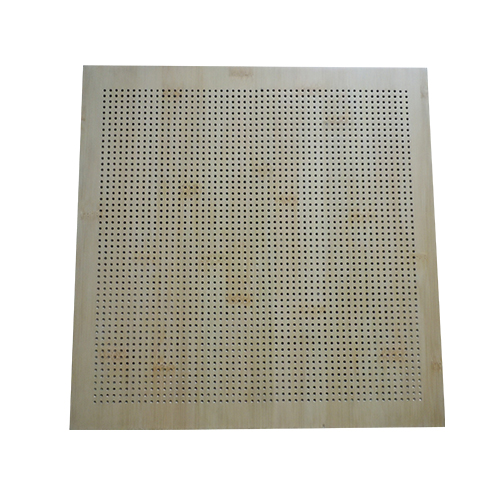

Perforated Wood Grain Aluminum Honeycomb Panel
- PRODUCT DETAIL
Product Description
Perforated Aluminum Honeycomb Panel as a composite product, in the use of architectural decoration, in order to achieve sound and noise reduction effect, the panel is processed into a hole and plus a layer of sound-absorbing material, and then through the composite technology come into being.
The volume of the honeycomb core material of the perforated aluminum honeycomb panel is only 1% to 3%. The rest of the space is air in the sealed state of the aluminum plate and the honeycomb structure. Due to the air sound insulation, also the thermal insulation performance is superior to any solid material, so the aluminum honeycomb panel has a good sound insulation, thermal insulation performance. The bottom panels of honeycomb panels can adopt different materials according to different requirements, such as aluminum panels, corrosion resistant panels, colored steel panels and nature stone. Perforated Aluminum Honeycomb Panel scientists through the hive of the in-depth study and found that the hexagonal borehole honeycomb structure is very high strength, the weight is light, so more and more projects apply aluminum honeycomb panel.
Advantages of aluminum honeycomb panel
- Energy saving, green material: good thermal and sound insulation & sound insulation, fire resistance;
- High windload resistance: high strength & rigidness and stable structure of honeycomb core;
- Easy installation & low labor cost: light weight;
- Good decoration: excellent flatness & wide color selection.
- highly flat surface;
- water proof, moisture proof, anti corrosion
Product Specification
| Specification | overall thickness: 10 ~ 100 mm |
| width ≤ 2200 mm | |
| length ≤ 6000 mm | |
| Face Sheet | Materials: high grade aluminum alloy ( 3003, 5005, 5754, AA 1100 ) |
| Thickness ≥ 1.0 mm ( curtain wall standard ) or ≥ 0.7 mm ( non-standard ) | |
| Core | Materials: high grade anti-corrosive aluminum honeycomb core |
| Aluminum foils’ thickness: 6 mm | |
| Bottom Sheet | Material: high grade aluminum alloy ( 3003, 5005, 5754 ) |
| thickness ≥ 0.7 mm ( standard ) or ≥ 0.5 mm ( non-standard ) | |
| Binder | Two-component high-temperature curing polyurethane adhesive of fuller/ hot melt adhesive membrane. |
| Treatment | wood grain |
| Color | RAL color or customized |
| Density | 5.0 ~ 7.5 KG/ m2 |
| Certificated | CE, SGS, ISO 9001:2000 |
Product Installation Structure

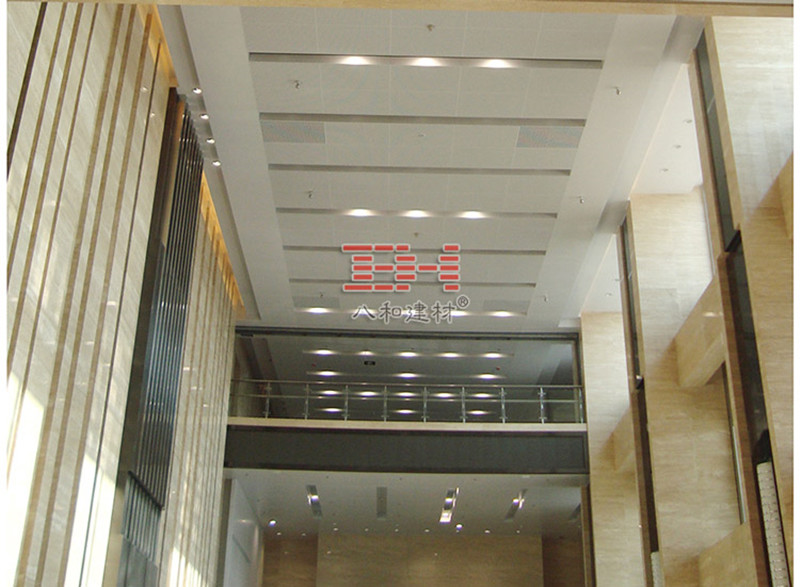

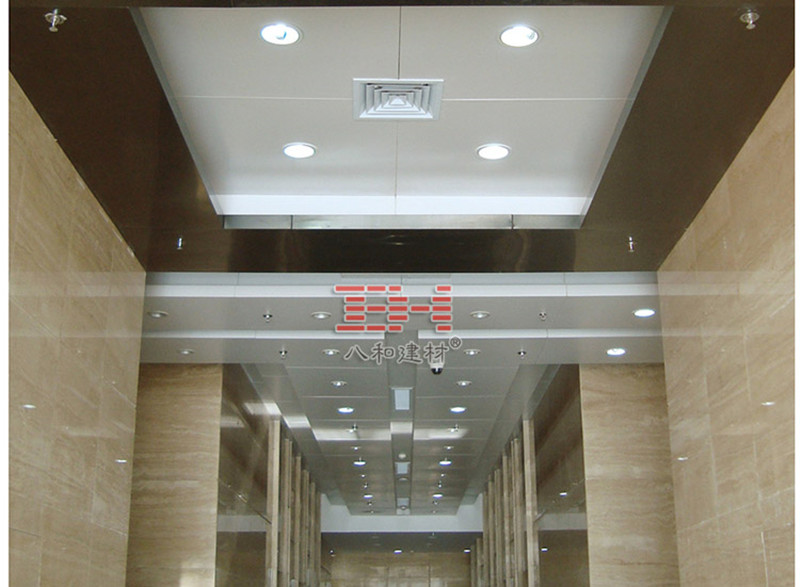

Aluminum Honeycomb Applications:
