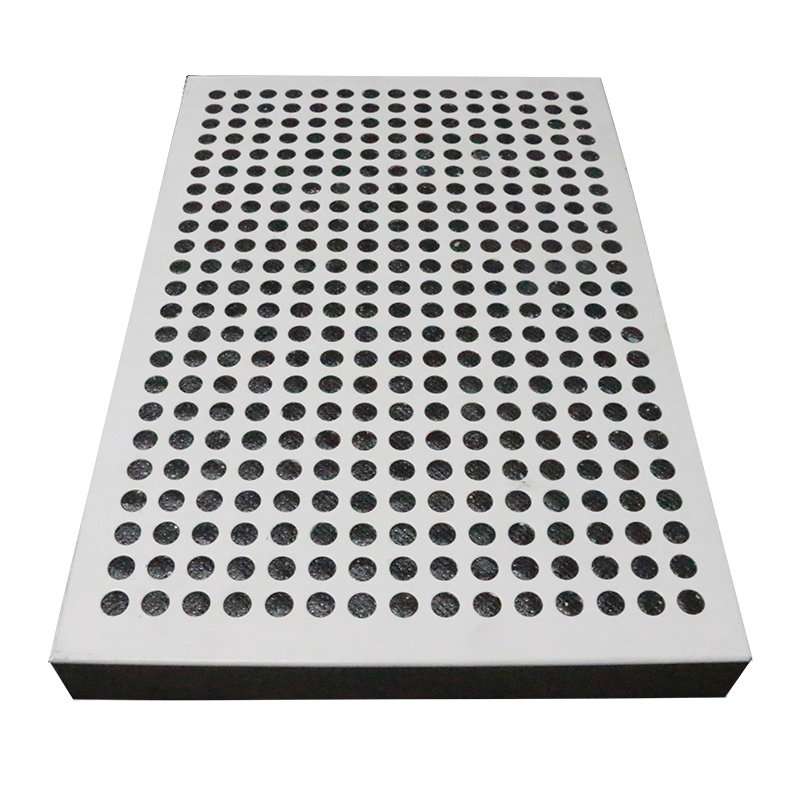

Sound Absorbing Perforated Aluminum Honeycomb Panel

Type: Curtain Walls or Suspended Ceiling
Place of Origin: Guangdong, China
Brand Name: Bahe
Key Words: Sound absorbing perforated aluminum honeycomb panel, aluminum composite panel
Materials: aluminum alloy
Thickness: 10 ~ 100 mm
Width: ≤ 2200 mm
Length: ≤ 6000 mm
Color: RAL color or customized
Surface treatment:  PVDF coated, polyester powder coated, hermal transfer printing, marble effect treatment
Certification: CE, SGS, ISO 9001:2000
M.O.Q 1 square meter
Price: FOB price
Free Sample: Yes
Guarantee: 10 Years
Package: plastic film, bubble inside, cartoon outside, wooden support
Delivery: 15~20 working days, or depend on quantity



SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Product Description

Sound absorbing perforated aluminum honeycomb panel is processed into a hole as required, and a layer of sound absorbing material is added under the panel, and then processed by a composite technique.
The honeycomb core material of the punched aluminum honeycomb panel has a volume of only 1% to 3%, and the rest of the space is air sealed in the aluminum plate and the honeycomb structure. The sound insulation and heat insulation performance of the air is superior to any solid material, heat and sound waves. The transmission is greatly limited, so the aluminum honeycomb panel has good sound insulation and heat insulation properties.

Advantages of aluminum bamboo honeycomb panel

  1. Energy saving, green material: good thermal and sound insulation & sound insulation, fire resistance;
  2. High windload resistance: high strength & rigidness and stable structure of honeycomb core;
  3. Easy installation & low labor cost: light weight;
  4. Good decoration: excellent flatness & wide color selection.

Product Specification

Specification overall thickness: 10 ~ 100 mm
width ≤ 2200 mm
length ≤ 6000 mm
Face Sheet Materials: high grade aluminum alloy (1100、3003、5257、6061 )
Thickness ≥ 1.0 mm ( curtain wall standard ) or ≥ 0.7 mm ( non-standard )
Core Materials: high grade anti-corrosive aluminum honeycomb core
Aluminum foils’ thickness: 6 mm
Bottom Sheet Material: high grade aluminum alloy ( 1100、3003、5257、6061 )
thickness ≥ 0.7 mm ( standard ) or ≥ 0.5 mm ( non-standard )
Binder Two-component high-temperature curing polyurethane adhesive of fuller/ hot melt adhesive membrane.
Treatment  PVDF coated, polyester powder coated, hermal transfer printing, marble effect treatment
Color RAL color or customized
Density 5.0 ~ 7.5 KG/ m2
Certificated CE, SGS, ISO 9001:2000

Product Installation Structure

aluminum-honeycomb-panel-installation-structure-1

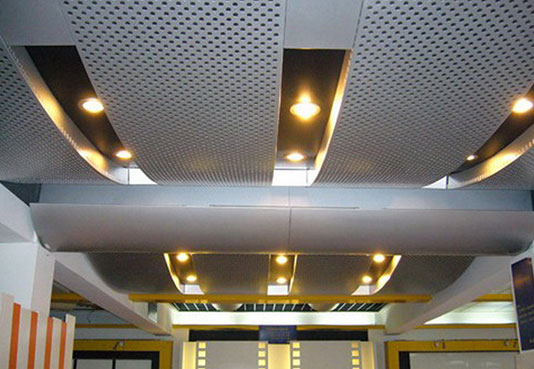

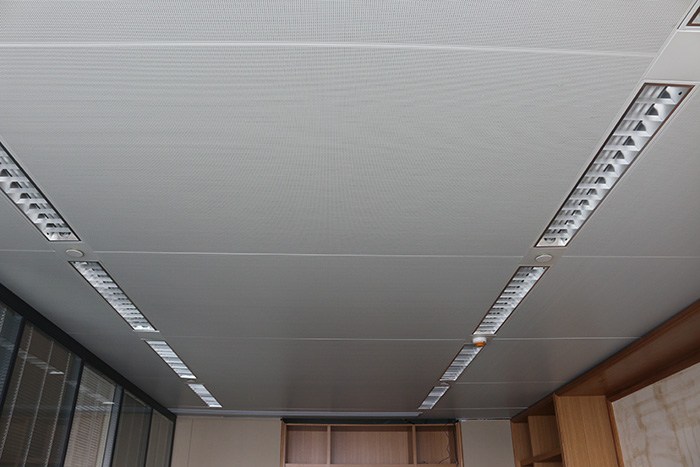

Perforated aluminum honeycomb panel Applications:

FILE0000 (2369)    20160728135236046
