Expanded Metal Mesh

Type: Curtain Walls, Suspended Ceiling
Place of Origin: Guangdong, China
Brand Name: Bahe
Key Words: metal mesh curtain wall panel, metal mesh suspended ceiling
Materials: aluminum alloy
Thickness: according to drawing or customized
Width: ≤ 2000 mm
Length: ≤ 6000 mm
Color: customized
Surface treatment: Anodized
Certification: CE, SGS, ISO 9001:2000
M.O.Q 1 square meter
Price: FOB price
Free Sample: Yes
Guarantee: 10 Years
Package: plastic film, bubble inside, cartoon outside, wooden support
Delivery: 15~20 working days, or depend on quantity
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

expanded-metal-mesh-product-styles

Product Description

Expanded metal mesh is formed from a single sheet that has been slit stretched to a wide array of diamond shaped openings. Expanded metal mesh offers saving in weight and metal, free passage of light, liquid, sound and air, while providing a decorative or ornamental effect. Expanded metal mesh is widely used in wall decoration, ceiling, karaoke sound barriers, outdoor metal curtain wall, small handicraft manufacture, pollution area protection, chemical plants, power plants, sewage treatment plants, etc.  Which spreads over hundreds of industries.



Product Features:

  • Cutting to shape is the only fabrication. Even when cut into irregular shapes and left unframed – the mesh does not fray.
  • Very efficient conductor.
  • The uncut knuckles support weight and withstand stress better than joints of welds.
  • Higher strength-to-weight ratio than the original sheet material.
  • Allow free passage to light, heat, sound and air.
  • Screening effect.
  • Makes an excellent reinforcement material.
  • Provides anti-slip surface.
  • The consistent diamond-pattern looks attractive.



Product Specification:

Product name Expanded metal
Material Stainless steel, thin low carbon steel, brass plate,

Aluminum plate, titanium plate, nickel plate, Al-Mg alloy plate.

Thickness 0.3-10.0 mm
Hole shape Diamond, square hole, scale hole, gothic etc.
Mesh size 1220*2440 mm, 1200*2400 mm,1000*2000 mm or customized
Surface treatment
  1. PVC coated
  2. Powder coated
  3. Anodized
  4. Paint
  5. Fluorocarbon spraying
  6. Polishing
Application
  1. Fence,panels & grids;
  2. Walkways;
  3. Protections & barres;
  4. Industrials & fire stairs;
  5. Metallic walls;
  6. Metallic ceilings;
  7. Grating & platforms;
  8. Metallic furniture;
  9. Balustrades;
  10. Containers & fixtures;
  11. Facade screening;
  12. Concrete stoppers
Benefits
  1. Continuity–the mesh is formed from a single piece of metal
  2. Environment friendly–no wasteful of material
  3. High strength–higher strength to weight ration then metal sheet
  4. Adherence–anti slip surface
  5. Very  good noise and fluid filtration–excludes & retains simultaneously
  6. Good rigidity–premium reinforcement properties
  7. Good conductivity–highly efficient conductor
  8. Screening–practical and effective light filtration
  9. Good resistance to corrosion
Package
  1. On galvanized iron pallet and wooden case with waterproof cloth
  2. On galvanized iron pallet with waterproof cloth
  3. In wooden case with waterproof paper
  4. In carton box
  5. In roll with woven bag, the biggest width is 3000 mm
  6. In bulk or In bundle
Certification ISO 9001, ISO 14001, BV, SGS certificate

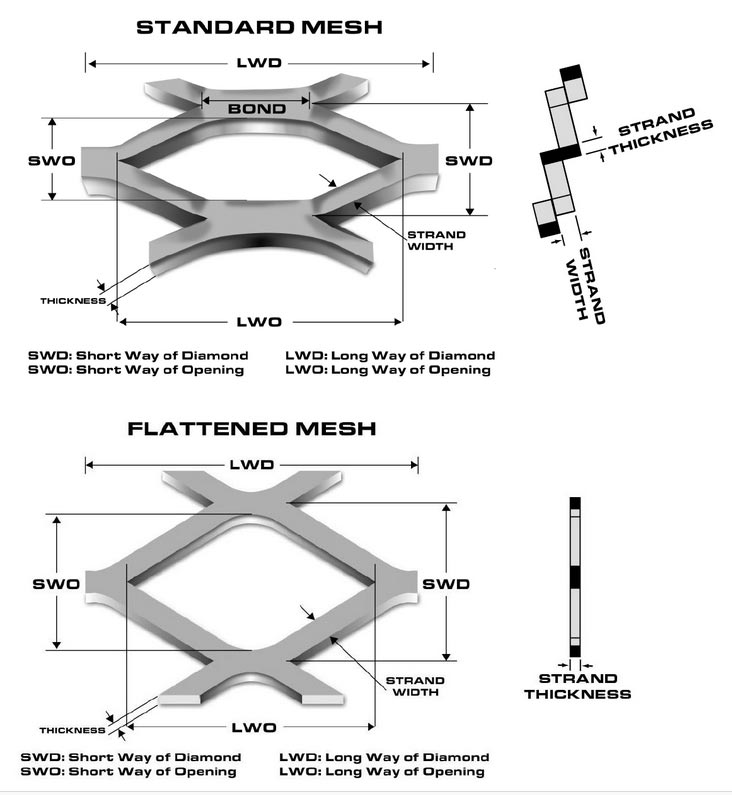

Expanded metal mesh structure

expanded-metal-mesh-structure

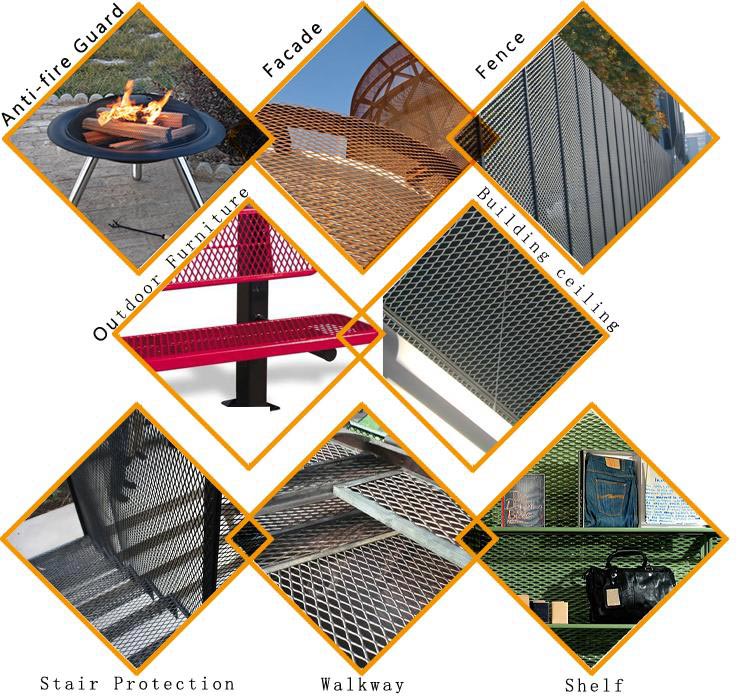

Expanded metal mesh applications



expanded-metal-mesh-application



Expanded metal mesh curtain wall is well-suited for a variety of out of door ( such as office building, government agency, stadiums, airports, railway stations ). Metal curtain wall usually adopts 304 stainless steel or 316 stainless steel material, the mesh is in dense diamond with integrity. Which can be used for fifty years without rust in complex climate outside. Meanwhile, construction is convenient, simple maintenance. Look from the visual effect, the surface of curtain wall is bright, beautiful, smooth, unique shape, which can give people the enjoyment of the spirit.

Decorative aluminum metal mainly applies to all kinds of indoor use ( Such as workshop, hotel, waiting area, platform, large conference room ). When planar ceiling is installed, the works usually adopt aluminum alloy plate or aluminum metal with anti-corrosion white paint. The anti-dazzle stems have some features of light transmission, sound absorbing, beautiful surface, etc.



FAQ

How much about your annual production capacity?

  • More than 2000 tons



What makes your products different from other company’s?

  • BAHE provide free design service, warranty service, with strictly quality control and very competitive price.



Can you make custom panels if I have a design in mind?

  • Yes, most of our products for exporting were manufacture to specs.



Can I get a pcs of your products sample?

  • Yes, free samples will be provided anytime.



Do you offer a warranty on your products?

  • Yes, for PVDF coating product we can provide more than 10 years warranty time



What type of materials do you use for your products?

  • Carbon steel plate, Stainless steel plate, Aluminum and Aluminum Alloy plate, Cooper plate, Galvanized plate etc.
  • Special material also available



Do you have any certificate?

  • Yes, we have ISO 9001, ISO 14001, BV certificate, SGS certificate.



Do you have a separate quality departments?

  • Yes, we have QC department. Will make sure you receive the perfect product.



Is there quality control on all production lines?

  • Yes, all production line have adequate quality control



Do you have mutually agreed upon specifications with your suppliers?

  • Yes,we will make contract specify the specifications with the material suppliers.
