Expanded Metal Mesh Cladding Decoration Sheet

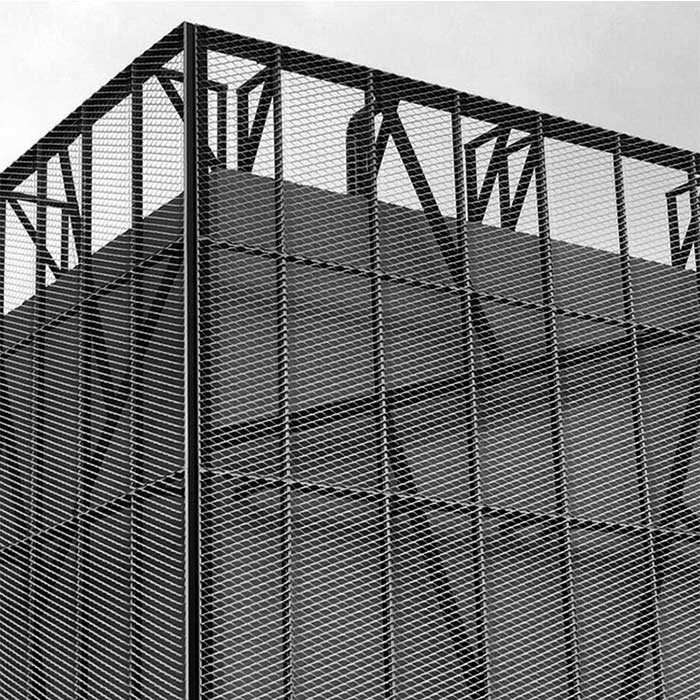

Type:	Curtain Walls, Suspended Ceiling
Place of Origin:	Guangdong, China
Brand Name:	Bahe
Key Words:	metal mesh curtain wall panel, metal mesh suspended ceiling
Materials:	aluminum alloy
Thickness:	according to drawing or customized
Width:	≤ 3000 mm
Length:	customized
Color:	customized
Surface treatment:	Anodized
Certification:	CE, SGS, ISO 9001:2000
M.O.Q	1 square meter
Price:	FOB price
Free Sample:	Yes
Guarantee:	10 Years
Package:	plastic film, bubble inside, cartoon outside, wooden support
Delivery:	15~20 working days, or depend on quantity

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

PRODUCT DETAIL

Expanded metal mesh

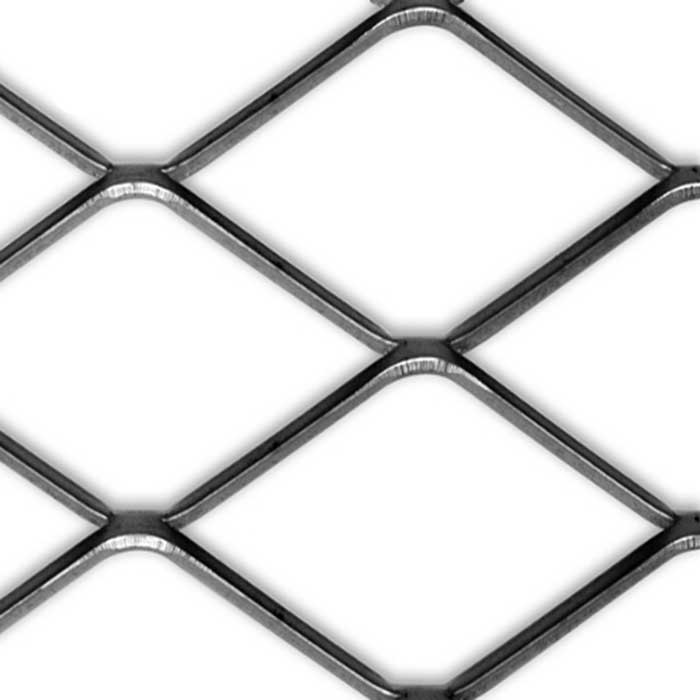

Expanded metal, also referred to as standard expanded metal, is the format of steel, aluminum or stainless steel after it has been put through the expanding press. The shearing and stretching of the expanding process creates strands and bonds that are set at a uniform angle to the plane on the sheet. This adds strength and rigidity to the material, while providing a directional skid-resistant surface.

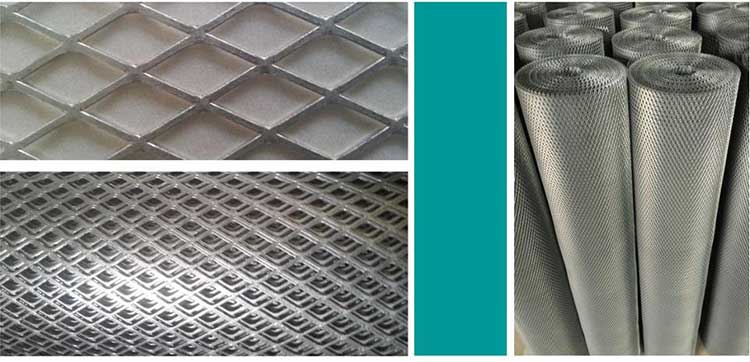

expanded-metal-mesh

Flattened expanded metal is manufactured by passing the raised expanded sheet through a cold roll reducing mill. This turns the strands and bonds down to provide a flattened surface, reducing the thickness and elongating the pattern. Expanded grating is milled in a similar manner to expanded metal.

expanded-metal-mesh-structure

Expanded Metal Mesh Specifications
Stytle	LBS.PER4 X 8 Sheet		Design Size(IN.)		Strand Width(IN.)	Overall Thickness(IN.)	%Open Area
Stytle	Plain	Galv.WT	SWD	LWD	Width	Overall Thickness(IN.)	%Open Area
3/16”#22	18.0	N/R	0.203	0.500	0.047	0.070	55
3/16”#20	29.0	N/R	0.203	0.500	0.063	0.080	40
1/4”#20	27.5	N/R	0.312	1.000	0.072	0.130	54
1/4”#18	36.5	N/R	0.312	1.000	0.072	0.130	54
5/16”#20	18.0	N/R	0.333	1.000	0.063	0.125	60
5/16”#18	33.0	N/R	0.333	1.000	0.094	0.170	48
1/2”#20	14.0	16.0	0.500	1.200	0.072	0.140	80
1/2”#18	22.5	27.0	0.500	1.200	0.088	0.172	72
1/2”#16	27.5	31.0	0.500	1.200	0.087	0.175	65
1/2”#13	47.0	55.0	0.500	1.200	0.096	0.204	57
The above specifications for your reference,we can make according to your requirement.
