Aluminum Baffle Ceiling

Type: Suspended Ceiling
Place of Origin: Guangdong, China
Brand Name: Bahe
Key Words: aluminum baffle ceiling tiles
Materials: aluminum alloy
Thickness: 0.6 - 1.2 mm
Size: customized
Process Treatment: bending
Color: customized color, wood grain color, anodized color
Surface treatment: PE coating, roller coating, anodized, wood grain
Certification: CE, SGS, ISO 9001:2000
M.O.Q 1 piece
Price: FOB price
Free Sample: Yes
Guarantee: 5 - 10 Years
Package: plastic film, bubble inside, cartoon outside, wooden support
Delivery: 15~20 working days, or depend on quantity
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Product Description

Aluminum baffle ceiling is one of the popular ceiling materials in recent years, it has many characteristics, including an open field of vision, ventilation, breathable, neat the crisp lines, distinct, all these reflecting its concise modern style. In addition, the installation and disassemble of aluminum baffle are very simple and convenient, gradually has become more and more popular as the main metal ceiling products in decoration market this years.

U-baffle ceiling is kind of visible curtain type ceiling. The visual angle of the house can be adjusted, and the pipes and other facilities of the building can be hidden. Additionally, it can make the light soft in the room at the same time. This kind of ceiling won’t affect the sound-absorbing and isolating effect of the house, but increase the effect of exhaust and heat elimination, and won’t influence the installation of fire facilities and air conditioner system.

Product Features

  • Light weight and height strength;
  • Beautiful design;
  • Easy installation and maintenance;
  • Perfect connection and minimized gaps between tiles;
  • Fire-proof, heat insulation, moisture proof, mould proof, sound absorbing, waterproof.



Product structure & Accessories

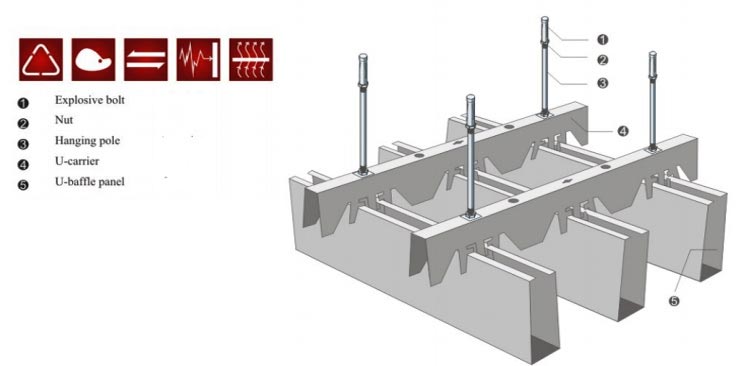

aluminum-baffle-ceiling-installation-structure

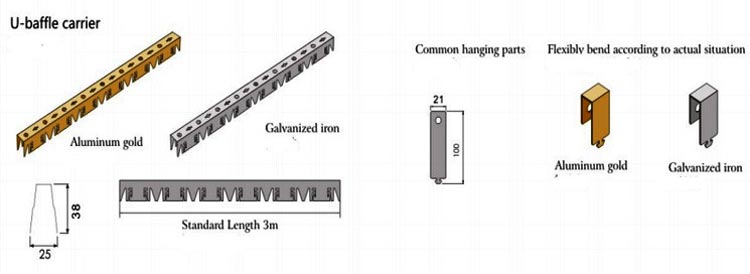

baffle-ceiling-accessories





Product Specification

Model No. Width ( mm ) Height ( mm ) Length ( mm )
BH – L50 25 50 ≤ 6000
BH – L60 25 60 ≤ 6000
BH – L70 25 70 ≤ 6000
BH – L80 25 / 30 80 ≤ 6000
BH – L100 25 / 30 100 ≤ 6000
Base Material Aluminum alloy, the grade of aluminum alloy can be selected according to the actual requirement. Besides, galvanized iron and stainless steel is also available.
Surface Treatment powder coated ( ordinary coated, PE coated, PVDF coated ), film coated, wood grain, anodized



Product Applications:

aluminum-baffle-ceiling-gallary

  1. Airport terminal building;
  2. subway stations;
  3. banks;
  4. exhibition centers;
  5. office buildings;
  6. open wide public space, etc.
