Standard Perforated Sound Absorbing Aluminum Ceiling Tile
- PRODUCT DETAIL
Product Description:
Product Specification
| SPECIFICATION | THICKNESS | HEIGHT |
| 300*300 mm | 0.4 – 1.0 mm | 19 mm ( short edge )
25 mm ( high edge ) |
| 300*450 mm | ||
| 300*600 mm | ||
| 300*1200 mm | ||
| 400*400 mm | 0.5 – 1.2 mm | |
| 500*500 mm | ||
| 600*600 mm | ||
| 600*1200 mm | ||
| base materials | aluminum alloy, the grade of aluminum alloy can be selected according to the actual requirements. Besides, galvanized iron and stainless steel material is also available. | |
| surface treatment | powder coated ( ordinary powder, Polyester powder ), paint coated, film coated. | |

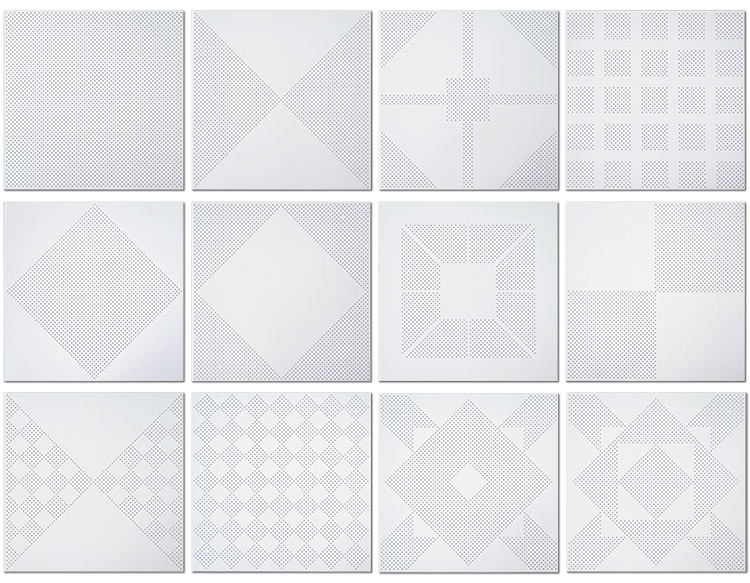

| type of surface | plan plate or perforated plate is selected according to the actual requirements. | |

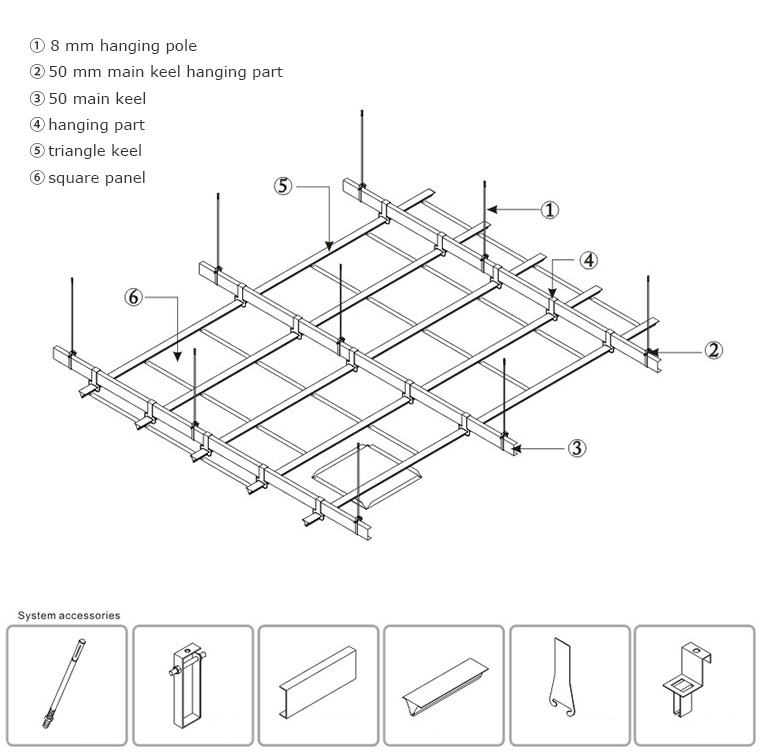

Product & Installation Structure

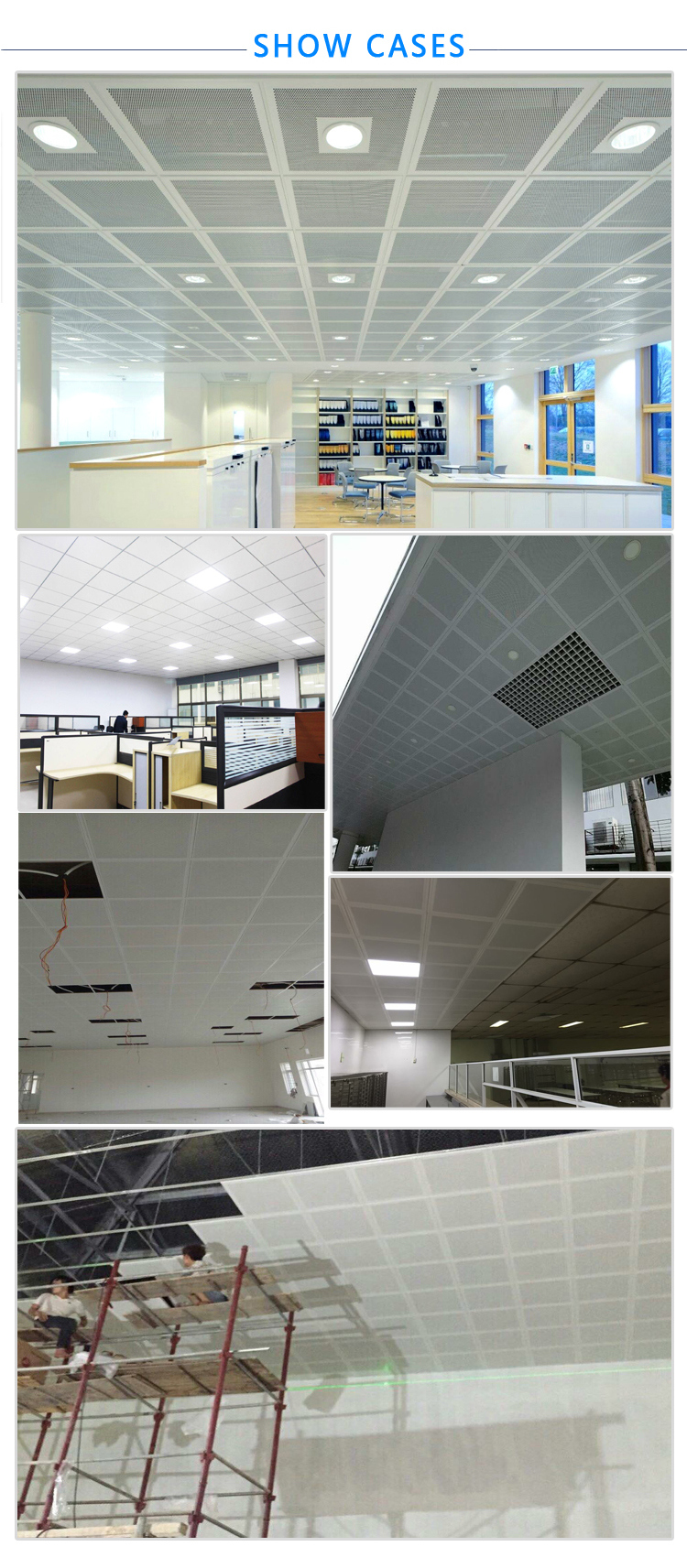

Project Case
