PVDF Curtain Wall Honeycomb Panel

Type: Curtain Walls  Ceiling
Place of Origin: Guangdong, China
Brand Name: Bahe
Key Words: aluminum honeycomb panel, aluminum composite panel
Materials: aluminum alloy
Thickness: 10 ~ 100 mm
Width: ≤ 2200 mm
Length: ≤ 6000 mm
Color: RAL color or customized
Surface treatment: PVDF,FEVE,PE,STONE,WOOD GRAIN
Certification: CE, SGS, ISO 9001:2000
M.O.Q 1 square meter
Price: FOB price
Free Sample: Yes
Guarantee: 10 Years
Package: plastic film, bubble inside, cartoon outside, wooden support
Delivery: 15~20 working days, or depend on quantity



SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Product Description

The curtain wall aluminum honeycomb panel achieves maximum strength in the building curtain wall decoration material with minimum weight, and is the preferred lightweight material in the construction industry.
Compared with other materials with the same steelness, the curtain wall aluminum honeycomb panel weighs only 1/5 of the aluminum veneer and 1/10 of the steel plate. The interconnected honeycomb core is like a myriad of I-beams. The core layer is distributed in the entire surface of the board. It is not easy to produce shear, can resist bending and compression, and its wind pressure is much higher than that of aluminum-plastic panels and aluminum veneers. Extremely high flatness can be achieved by making honeycomb panels large in size.

The curtain wall aluminum honeycomb panel was developed by scientists to find that the honeycomb structure of the regular hexagonal hole is high in strength, light in weight, and soundproof and heat insulating. Widely used in the internal structure of space shuttles, satellites, spacecraft. With the rapid development of the modern architectural decoration industry, the curtain wall aluminum honeycomb panels produced by the innovative technology have been widely used in architectural decoration.

Advantages

1, excellent weather resistance and UV resistance, the color is very durable and stable, can maintain no discoloration for at least ten or even thirty years;
2, excellent acid and alkali resistance, can withstand the harsh environment of the wind and sun;
3, good adhesion, high toughness, strong impact resistance, smooth coating, strong pollution resistance, easy to clean;
4, a wide range of colors, bright and beautiful, good texture. With monochrome paint and metal paint, it can meet customer requirements to the utmost extent.

Product Specification

Specification overall thickness: 10 ~ 100 mm
width ≤ 2200 mm
length ≤ 6000 mm
Face Sheet Materials: high grade aluminum alloy ( 3003, 5005, 5754, AA 1100 )
Thickness ≥ 1.0 mm ( curtain wall standard ) or ≥ 0.7 mm ( non-standard )
Core Materials: high grade anti-corrosive aluminum honeycomb core
Aluminum foils’ thickness: 6 mm
Bottom Sheet Material: high grade aluminum alloy ( 3003, 5005, 5754 )
thickness ≥ 0.7 mm ( standard ) or ≥ 0.5 mm ( non-standard )
Binder Two-component high-temperature curing polyurethane adhesive of fuller/ hot melt adhesive membrane.
Treatment PVDF,FEVE,PE,STONE,WOOD GRAIN
Color RAL color or customized
Density 5.0 ~ 7.5 KG/ m2
Certificated CE, SGS, ISO 9001:2000

Product Installation Structure

aluminum-honeycomb-panel-installation-structure-1

Aluminum Honeycomb Applications:

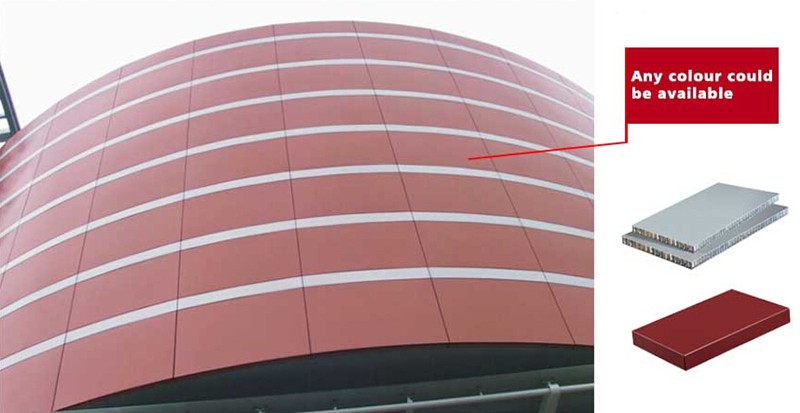

705_副本

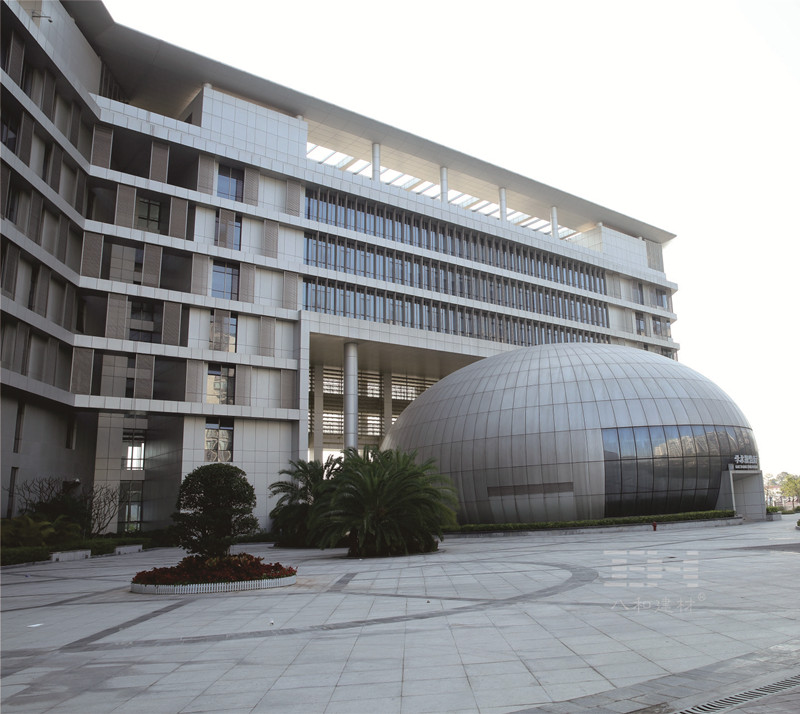

案例图_副本
