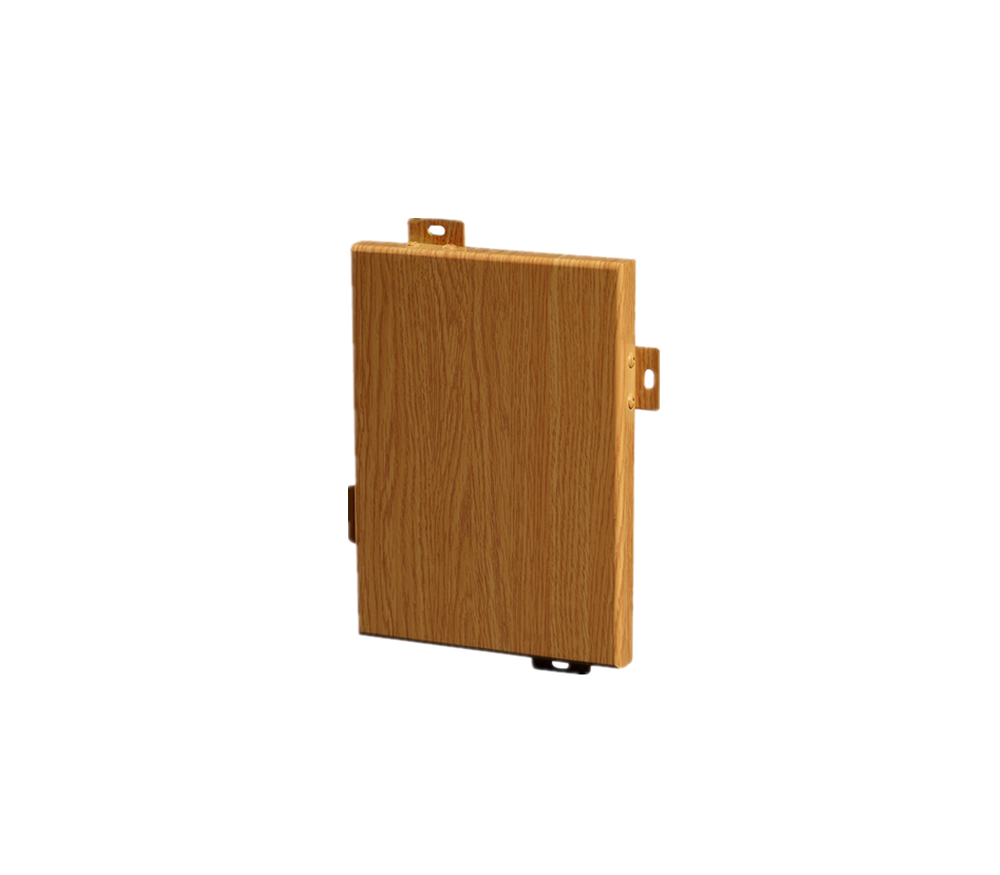

Metal Cladding Panel Aluminum Veneer for Building Decoration

Type: Curtain Walls
Place of Origin: Guangdong, China
Brand Name: Bahe
Key Words: aluminum curtain wall system, aluminum cladding panels
Materials: aluminum alloy
Thickness: 2.0 ~ 4.0 mm
Width: ≤ 2000 mm
Length: ≤ 6000 mm
Color: RAL color or customized
Surface treatment: Fluorocarbon ( PVDF )
Certification: CE, SGS, ISO 9001:2000
M.O.Q 1 square meter
Price: FOB price
Free Sample: Yes
Guarantee: 10 Years
Package: plastic film, bubble inside, cartoon outside, wooden support
Delivery: 15~20 working days, or depend on quantity
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Product Description

Aluminum cladding panel ( sometimes call aluminum veneer, aluminum solid panel ) is used aluminum or aluminum alloy as the raw material, the processing of molding and decorative surface protective coating of architectural aluminum cladding. The use of internationally renowned brands of the United States PPG, Japan’s state legislature fluorocarbon coating company, the Fluorocarbon(PVDF) content of not less than 70%, to ensure that the color and durability of excellent quality. Our production of fluorocarbon liquid sprayed aluminum sheet by the state building materials quality supervision and inspection center testing, product performance in full compliance with “building decorative aluminum sheet”, the national standards.



Product Features:

  1. Compared with stone and glass, the aluminum solid panels are lighter;
  2. Different from the fragility of the glass and stone, the aluminum panels have more excellent strength and toughness;
  3. The aluminum panels are painted with bright colors and beautiful patterns;
  4. The aluminum panels have the excellent thermal conductivity, conductive, anti-bacterial, fire and cleaning performance, etc.;
  5. As manufactured by modular production in the factory, the aluminum panels can be installed easier;
  6. With the fluorocarbon(PVDF) coating, the aluminum panels’ surface will not fade during 15~20 years after installation;
  7. The aluminum panels are environmental friendly and 100% recyclable compared with the glass and stone curtain wall.



Product Specification:

Item Name Aluminum Cladding Panel, Aluminum Veneer
Materials A1100 H24, A3003 H24, A5052 H24, A5005 H24 or according to customers requirement
Thickness 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 4.0 mm, 5.0 mm
Fabricating Process cutting, bending, jointing, welding, polishing
Color RAL color or Customized
Surface
  1. fluorocarbon painting
  2. PE coating
  3. powder coating
  4. roller coating
Max Size 1600 mm * 1300 mm * 2400 mm ( L * W * H )
Certification CE, ISO 9001, ISO 14001, SGS
Coating Color Guarantee
  1. 15 years color guarantee ( fluorocarbon painting )
  2. 10 years color guarantee ( roller painting )
  3. 5 years color guarantee ( PE coating )
  4. 3 years color guarantee ( powder coating )



Product structure

aluminum-veneer-product-structure

Installation Structure

aluminum-veneer-installation-structure

Project Case

shopping-mall-cladding-wall-solution shopping-store-aluminum-veneer
