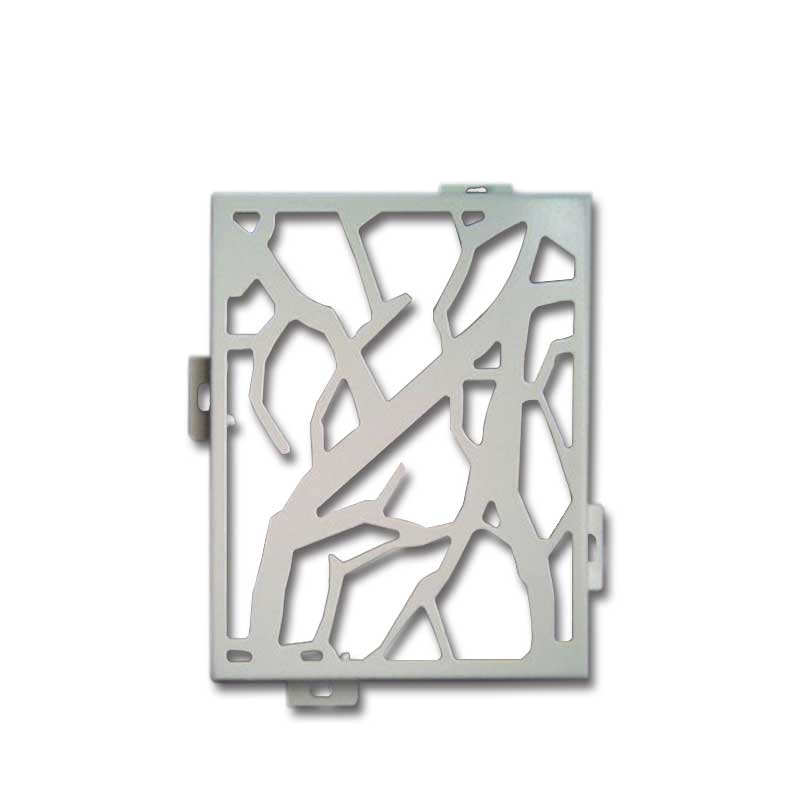

Hollow-Out Perforated Aluminum Cladding Panel

Type: Curtain Walls
Place of Origin: Guangdong, China
Brand Name: Bahe
Key Words: perforated curtain wall system, hollow-out aluminum cladding panels
Materials: aluminum alloy
Thickness: 3.0 ~ 4.0 mm
Width: ≤ 2000 mm
Length: ≤ 6000 mm
Color: RAL color or customized
Surface treatment: Fluorocarbon ( PVDF ), Anodized
Certification: CE, SGS, ISO 9001:2000
M.O.Q 1 square meter
Price: FOB price
Free Sample: Yes
Guarantee: 10 Years
Package: plastic film, bubble inside, cartoon outside, wooden support
Delivery: 15~20 working days, or depend on quantity
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Product Description

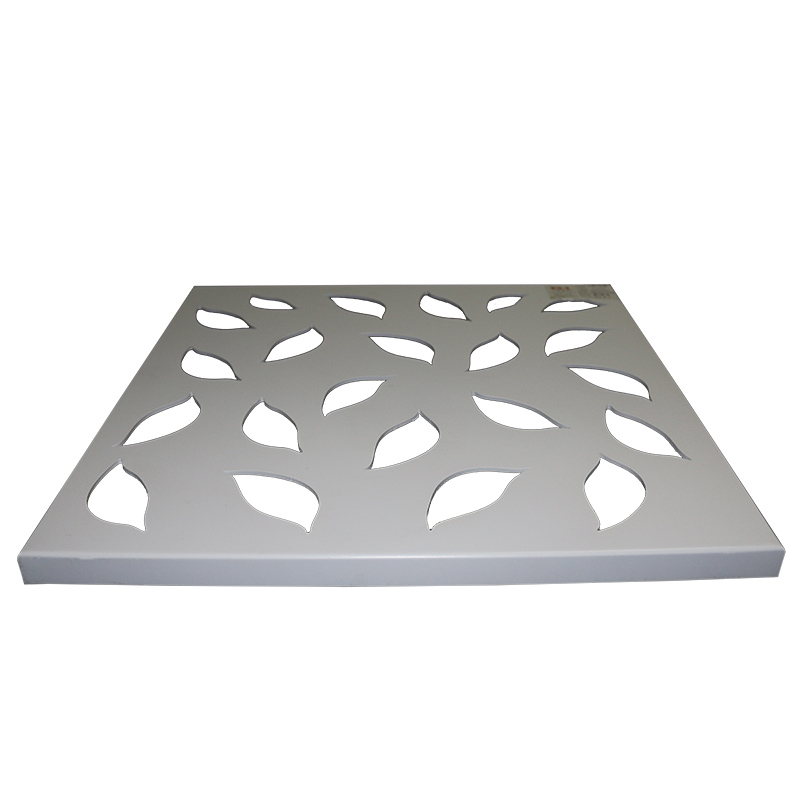

Hollow-out aluminum veneer is a kind of aluminum sheet carved by CNC punch press machine. Press machine with the instructions of the program to carve, automatic machine operation, cutting, carving the design of patterns, and then polishing its surface smooth, and finally spray. Hollowed-out aluminum plates are mostly used for building curtain walls and interior partition decoration.



Product Specification

Item Name Hollow-out perforated aluminum cladding panel
Materials A1100 H24, A3003 H24, A5052 H24, A5005 H24 or according to customers requirement
Thickness 3.0 mm, 3.5 mm, 4.0 mm, 5.0 mm
Fabricating Process cutting, bending, jointing, welding, polishing
Color RAL color or Customized
Surface
  1. fluorocarbon painting
  2. PE coating
  3. powder coating
  4. roller coating
Max Size 1600 mm * 1300 mm * 2400 mm ( L * W * H )
Certification CE, ISO 9001, ISO 14001, SGS
Coating Color Guarantee
  1. 15 years color guarantee ( fluorocarbon painting )
  2. 10 years color guarantee ( roller painting )
  3. 5 years color guarantee ( PE coating )
  4. 3 years color guarantee ( powder coating )

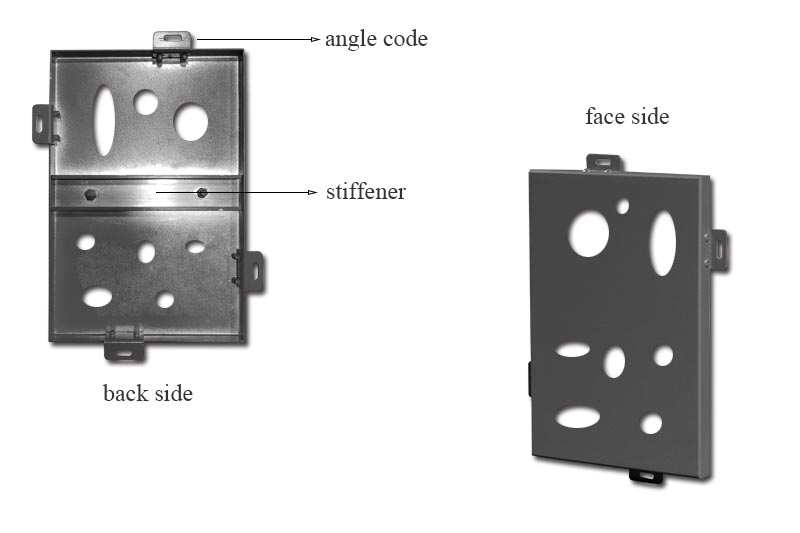

Product Structure

镂空铝单板-产品结构

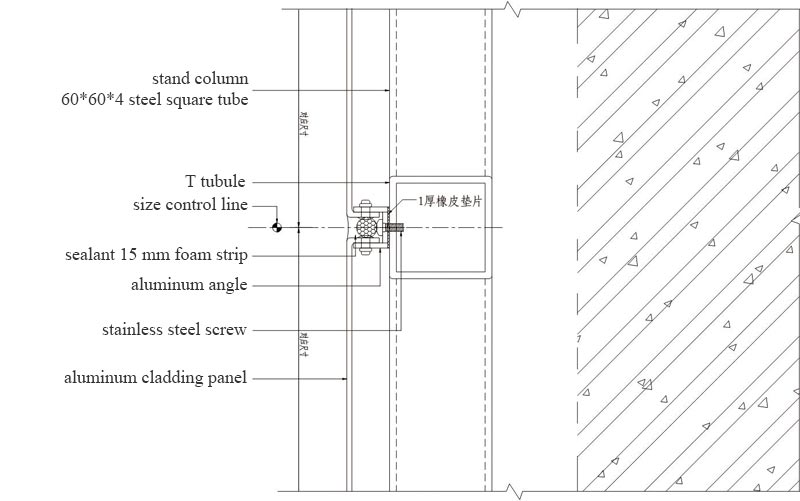

Installing Structure

aluminum-veneer-installation-structure

Project Case

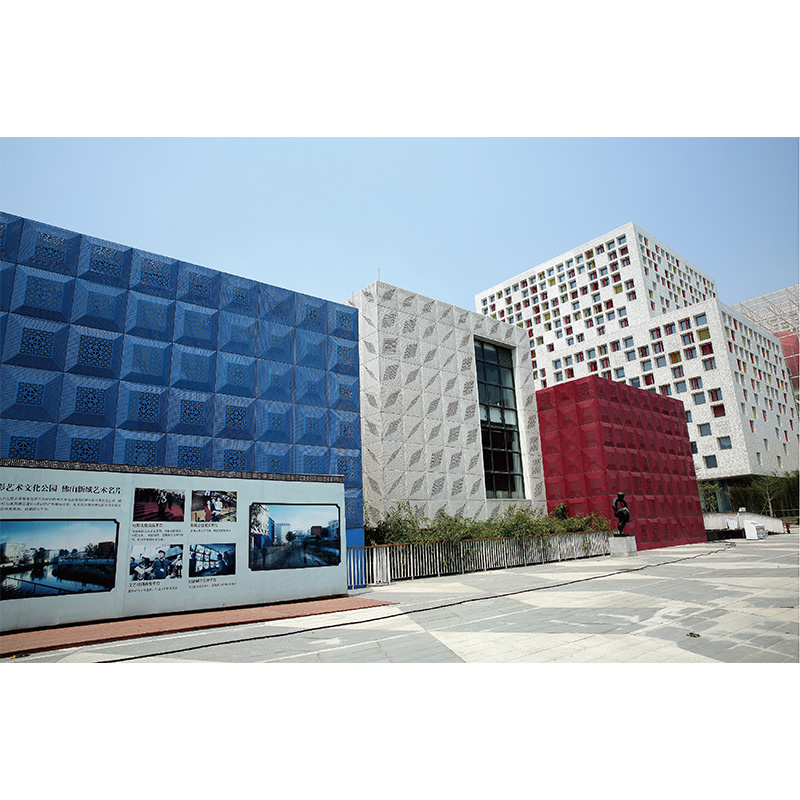

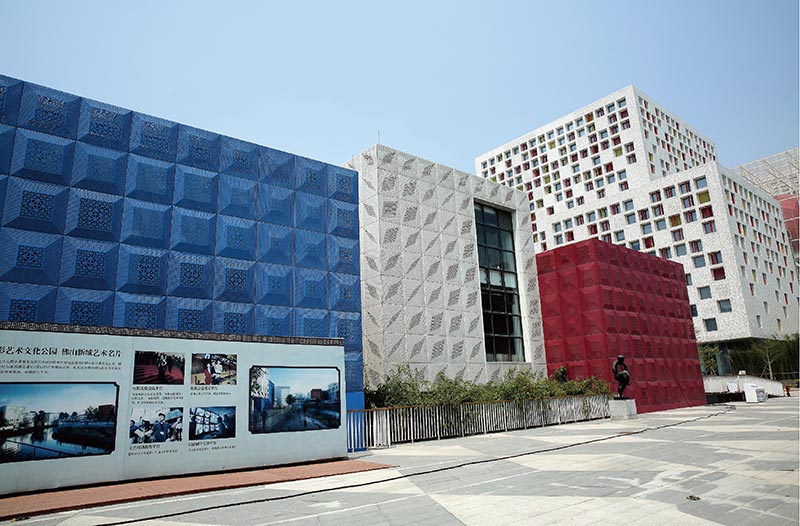

Foshan-Youth-Palace

Foshan Youth Palaceproducts: aluminum hollow-out cladding panel
color: PVDF painting, anodized
area: 81,000 square meters
