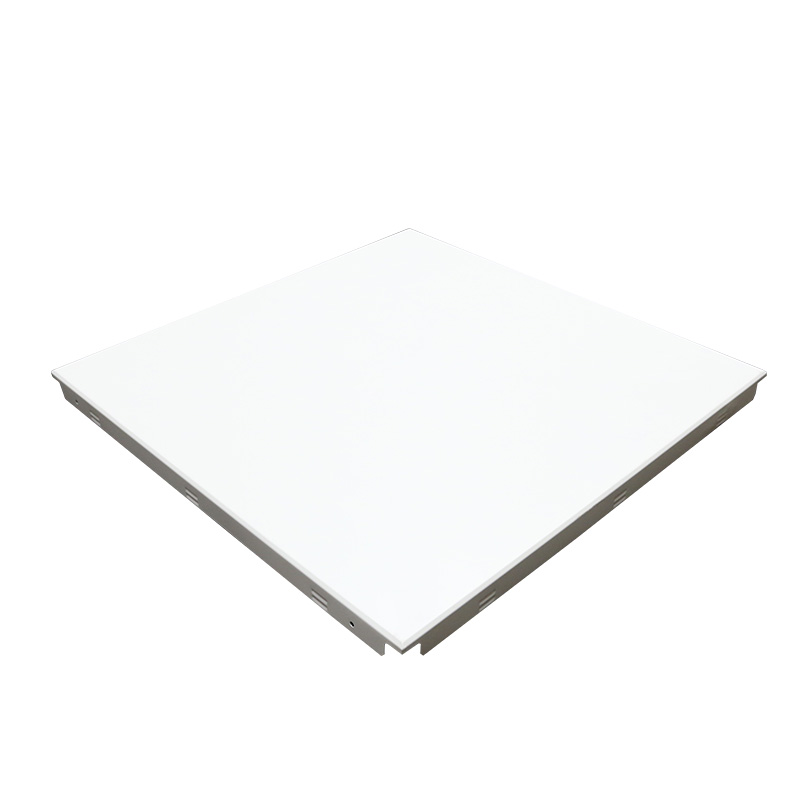

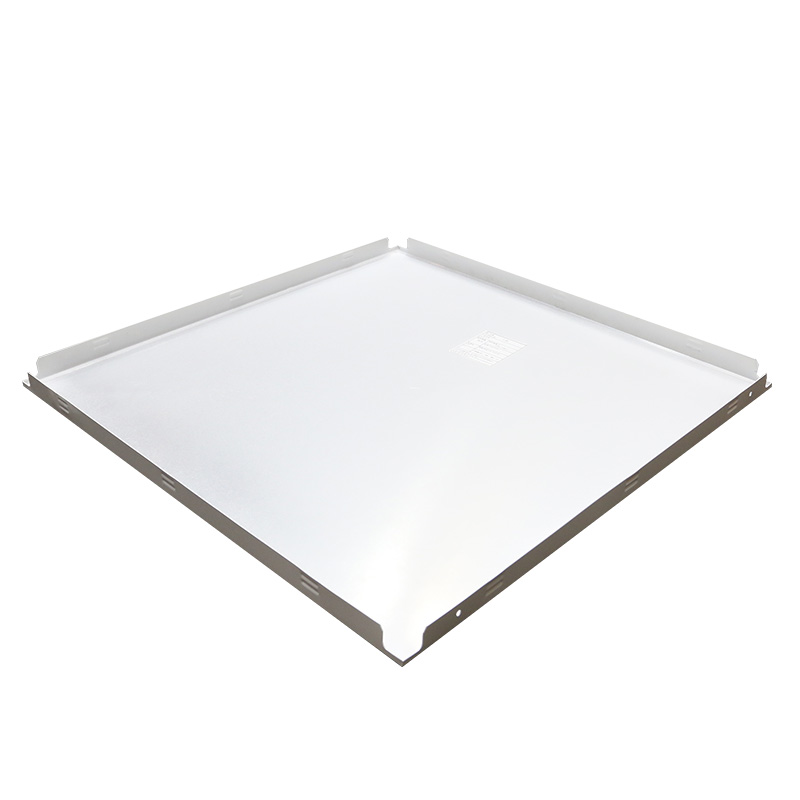

High-edge Square-shaped aluminum ceiling

Type: Suspended Ceiling
Place of Origin: Guangdong, China
Brand Name: Bahe
Key Words: High-edge Square-shaped aluminum ceiling
Materials: aluminum alloy
Thickness: 0.6 - 1.2 mm
Size: 300*300 mm, 450*450 mm, 600*600 mm, 300*1200 mm
Process Treatment: Punch, Perforated
Color: RAL color or customized
Surface treatment: PE coating, roller coating, anodized
Certification: CE, SGS, ISO 9001:2000
M.O.Q 1 piece
Price: FOB price
Free Sample: Yes
Guarantee: 5 - 10 Years
Package: plastic film, bubble inside, cartoon outside, wooden support
Delivery: 15~20 working days, or depend on quantity



SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Product Description:

High-edge Square-shaped aluminum ceiling has a larger hemming edge than ordinary low-side aluminum gusset products. Its flange height is up to 25mm. It is installed with A-type keel. The flat surface is higher and the installation structure is more stable. The outdoor ceiling decoration has a certain windproof effect.
High-edge Square-shaped aluminum ceiling is made of high-quality aluminum alloy through precise leveling and compression molding to ensure the shape stability, flatness and dimensional accuracy of the finished product. The general specifications are 600*600, 600*1200, 300*1200, etc. High-edge Square-shaped aluminum ceiling is a square product that combines modern design and functionality to provide customers with a neat and simple appearance. A varied ceiling solution.

Product Feature:

  • flame retardant, damp-proof, environmental protection
  • dry construction method with easy & speedy installation
  • easy maintenance & repair
  • superb acoustic absorption with perforated tiles
  • Windproof

Product Specification

SPECIFICATION THICKNESS HEIGHT
300*300 mm 0.4 – 1.0 mm 19 mm ( short edge )

25 mm ( high edge )

300*450 mm
300*600 mm
300*1200 mm
400*400 mm 0.5 – 1.2 mm
500*500 mm
600*600 mm
600*1200 mm
 base materials aluminum alloy, the grade of aluminum alloy can be selected according to the actual requirements. Besides, galvanized iron and stainless steel material is also available.
 surface treatment powder coated ( ordinary powder, Polyester powder ), paint coated, film coated.
type of surface plan plate or perforated plate is selected according to the actual requirements.

Product & Installation Structure

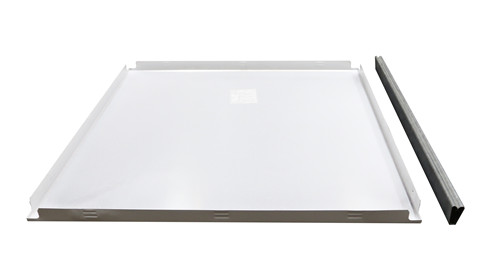

IMG_1948_副本

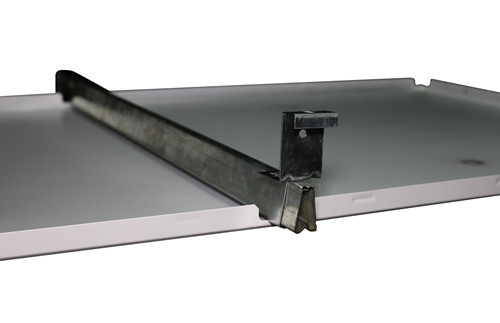

高边铝扣板_副本

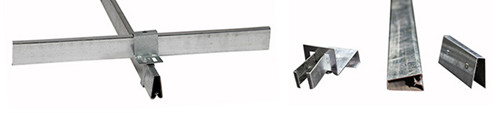

6361058472604687505377550_副本

Project Case

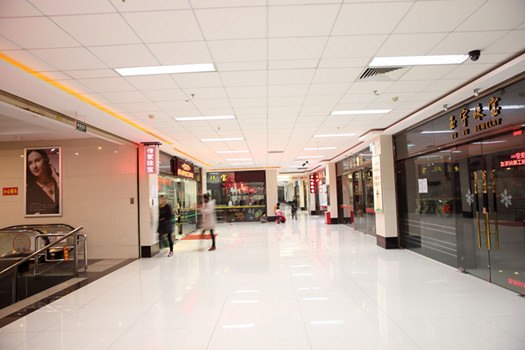

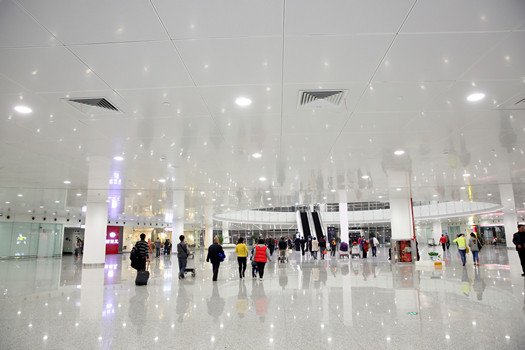

广州云峰珠宝城2_副本 深圳机场 (26)_副本
