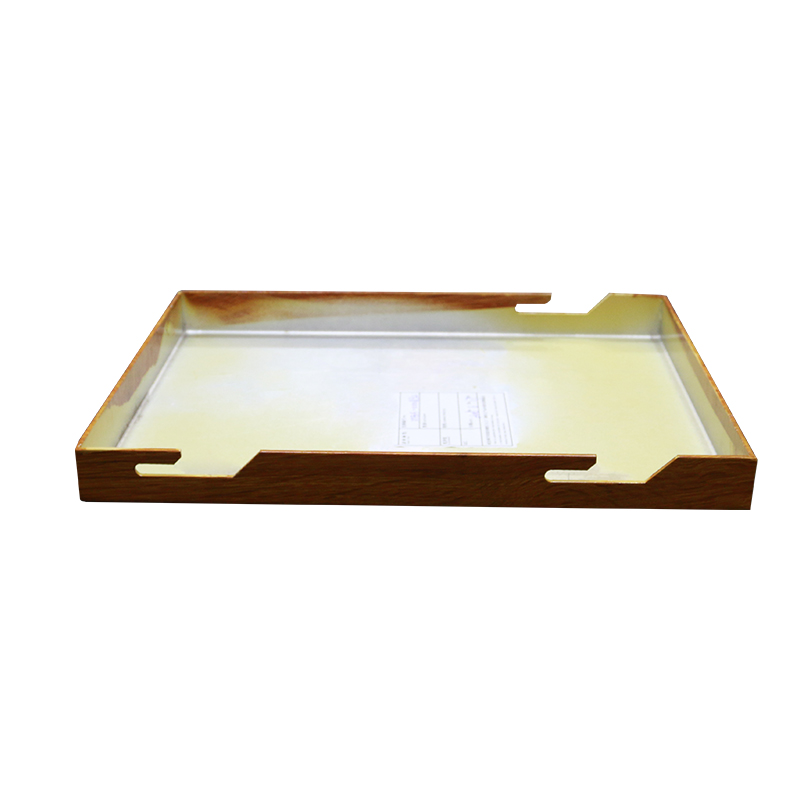

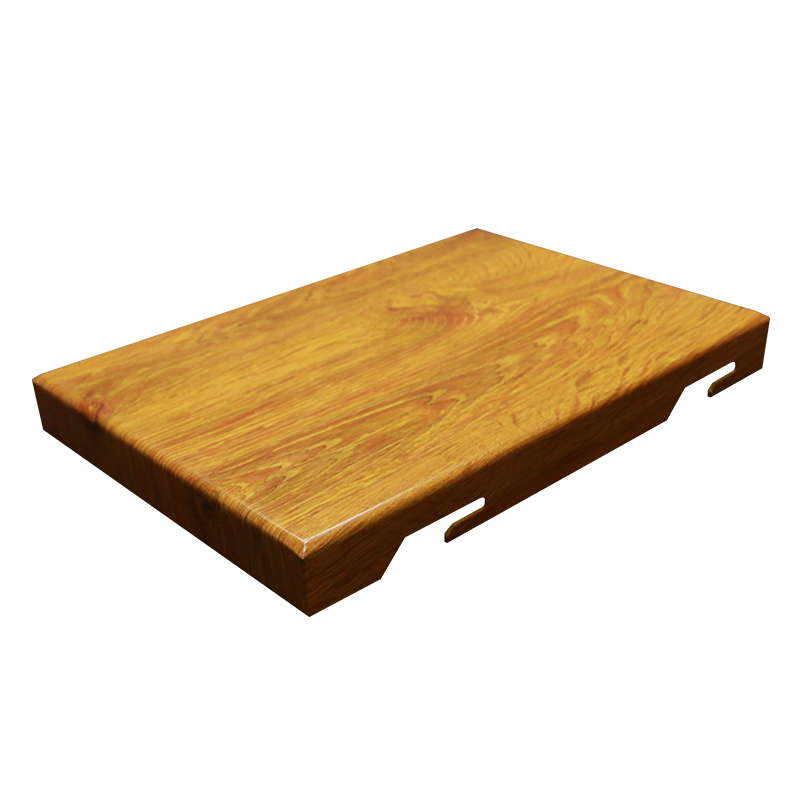

Hanging Aluminum Cladding Panel

Type: Curtain Walls
Place of Origin: Guangdong, China
Brand Name: Bahe
Key Words: aluminum curtain wall system, aluminum cladding panels,Hanging Aluminum Cladding Panel
Materials: aluminum alloy
Thickness: 1.5 ~ 4.0 mm
Width: ≤ 2000 mm
Length: ≤ 6000 mm
Color: RAL color or customized
Surface treatment: polyester powder coated, PVDF coated, thermal transfer printing, marble effect treatment
Certification: CE, SGS, ISO 9001:2000
M.O.Q 1 square meter
Price: FOB price
Free Sample: Yes
Guarantee: 10 Years
Package: plastic film, bubble inside, cartoon outside, wooden support
Delivery: 15~20 working days, or depend on quantity



SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Product Description

Hanging Aluminum Cladding Panel is a product structure designed for hanging installation. Compared with the decoded aluminum board, it does not need to be assembled and decoded on the board. It only needs to be buckled at the flange.
The Hanging Aluminum Cladding Panel determines the mounting position of the Hanging Aluminum Cladding Panel support frame based on the design drawings and the actual measured dimensions. Fix the skeleton and the position of the mounting frame to be accurate, and the combination should be firm. According to the specifications of the aluminum veneer, the specific position control of the horizontal and vertical frame keels is corrected, and the horizontal and vertical requirements are required.

Product Features:

  • Compared with stone and glass, the aluminum  panels are lighter;
  • Different from the fragility of the glass and stone, the aluminum panels have more excellent strength and toughness;
  • The aluminum panels are painted with bright colors and beautiful patterns;
  • The aluminum panels have the excellent thermal conductivity, conductive, anti-bacterial, fire and cleaning performance, etc.;
  • As manufactured by modular production in the factory, the aluminum panels can be installed easier;
  • With the fluorocarbon(PVDF) coating, the aluminum panels’ surface will not fade during 15~20 years after installation;
  • The aluminum panels are environmental friendly and 100% recyclable compared with the glass and stone curtain wall.

Product Specification:

Item Name Hanging Aluminum Cladding Panel
Materials A1100 H24, A3003 H24, A5052 H24, A5005 H24 or according to customers requirement
Thickness 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 4.0 mm, 5.0 mm
Fabricating Process cutting, bending, jointing, welding, polishing
Color RAL color or Customized
Surface
  1. fluorocarbon painting
  2. PE coating
  3. powder coating
  4. roller coating
Max Size 1600 mm * 1300 mm * 2400 mm ( L * W * H )
Certification CE, ISO 9001, ISO 14001, SGS
Coating Color Guarantee
  1. 15 years color guarantee ( fluorocarbon painting )
  2. 10 years color guarantee ( roller painting )
  3. 5 years color guarantee ( PE coating )
  4. 3 years color guarantee ( powder coating )

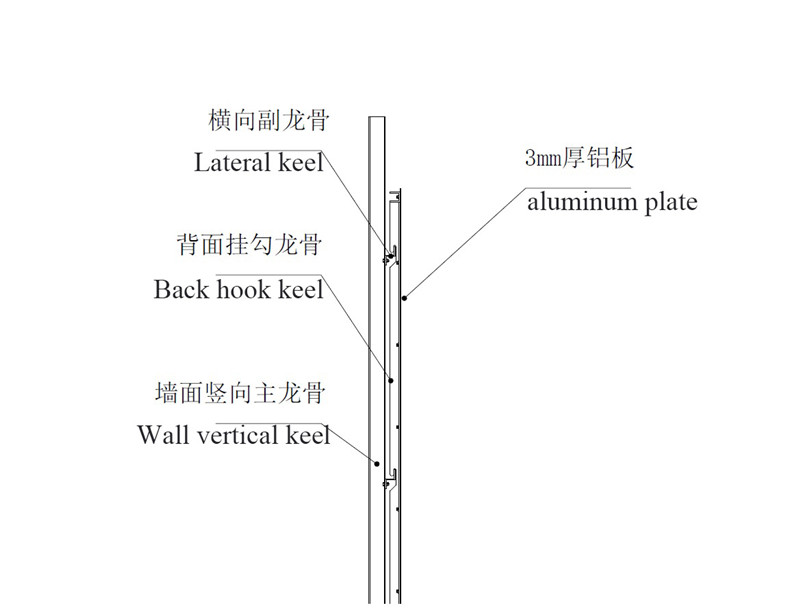

Installation Structure

铝单板干挂式安装节点_副本

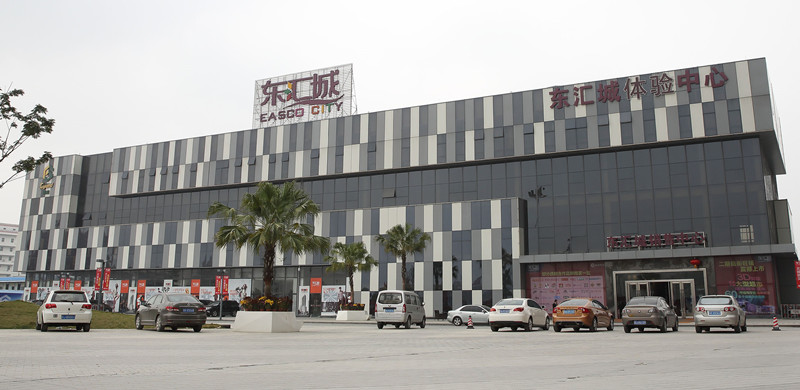

Project Case

开平东汇城 (10)_副本
