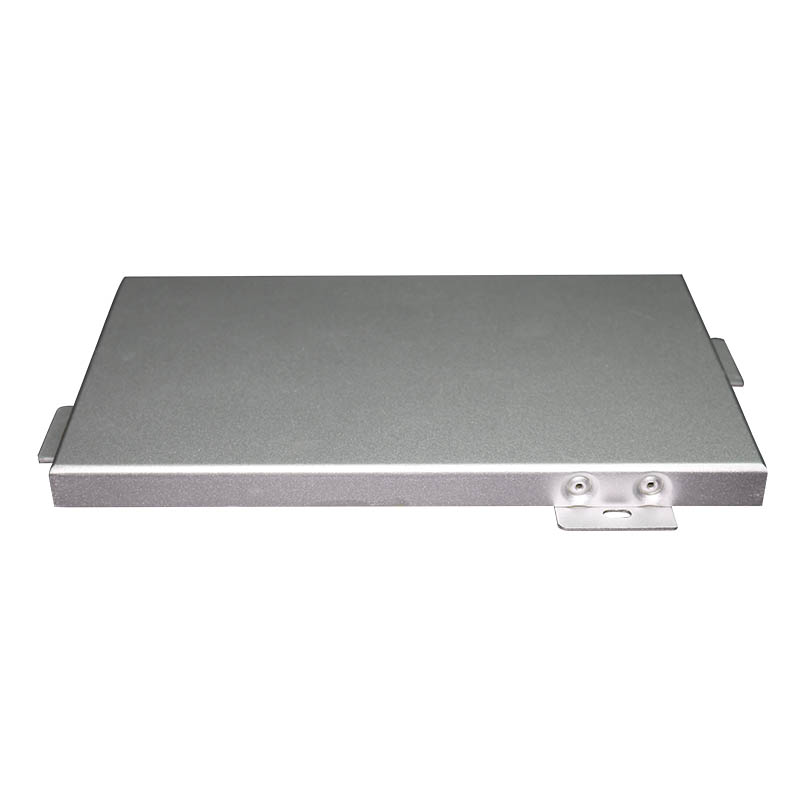

Curtain Wall Aluminum Cladding Panel

Type: Curtain Walls
Place of Origin: Guangdong, China
Brand Name: Bahe
Key Words: aluminum curtain wall system, aluminum cladding panels
Materials: aluminum alloy
Thickness: 2.5 ~ 4.0 mm
Width: ≤ 2000 mm
Length: ≤ 6000 mm
Color: RAL color or customized
Surface treatment: polyester powder coated, PVDF coated, thermal transfer printing, marble effect treatment
Certification: CE, SGS, ISO 9001:2000
M.O.Q 1 square meter
Price: FOB price
Free Sample: Yes
Guarantee: 10 Years
Package: plastic film, bubble inside, cartoon outside, wooden support
Delivery: 15~20 working days, or depend on quantity



SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Product Description

Curtain Wall Aluminum Cladding Panel is a new and beautiful architectural curtain wall metal decoration material, which gradually replaces the traditional curtain wall material mosaic, marble and sandblasting exterior wall. Curtain Wall Aluminum Cladding Panel has advantages in the use of high-rise building curtain wall due to its light weight and high strength. Because high-rise buildings are subject to various loads at all times, especially the wind pressure is large, the mosaic material is easy to fall off and the hardness is not strong. The curtain wall material will be deformed by the wind pressure. Curtain Wall Aluminum Cladding Panel is widely used based on its unique advantages and is the main force of new curtain wall decoration materials.

Curtain Wall Aluminum Cladding Panel is suitable for building curtain wall decoration in shopping centers, airports, stadiums, stations, factories, hospitals, clubs, banks, shopping malls, exhibition halls, etc.

Product Features:

  • Compared with stone and glass, the aluminum solid panels are lighter;
  • Different from the fragility of the glass and stone, the aluminum panels have more excellent strength and toughness;
  • The aluminum panels are painted with bright colors and beautiful patterns;
  • The aluminum panels have the excellent thermal conductivity, conductive, anti-bacterial, fire and cleaning performance, etc.;
  • As manufactured by modular production in the factory, the aluminum panels can be installed easier;
  • With the fluorocarbon(PVDF) coating, the aluminum panels’ surface will not fade during 15~20 years after installation;
  • The aluminum panels are environmental friendly and 100% recyclable compared with the glass and stone curtain wall.

Product Specification:

Item Name Curtain Wall Aluminum Cladding Panel
Materials A1100 H24, A3003 H24, A5052 H24, A5005 H24 or according to customers requirement
Thickness 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 4.0 mm, 5.0 mm
Fabricating Process cutting, bending, jointing, welding, polishing
Color RAL color or Customized
Surface
  1. fluorocarbon painting
  2. PE coating
  3. powder coating
  4. roller coating
Max Size 1600 mm * 1300 mm * 2400 mm ( L * W * H )
Certification CE, ISO 9001, ISO 14001, SGS
Coating Color Guarantee
  1. 15 years color guarantee ( fluorocarbon painting )
  2. 10 years color guarantee ( roller painting )
  3. 5 years color guarantee ( PE coating )
  4. 3 years color guarantee ( powder coating )

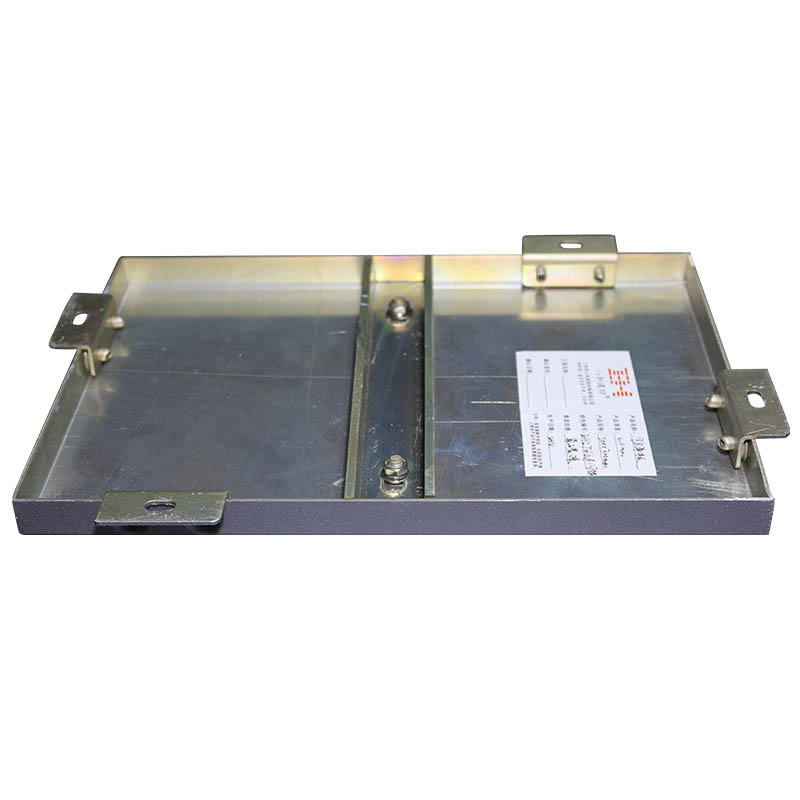

Product structure

aluminum-veneer-product-structure

Installation Structure

aluminum-veneer-installation-structure

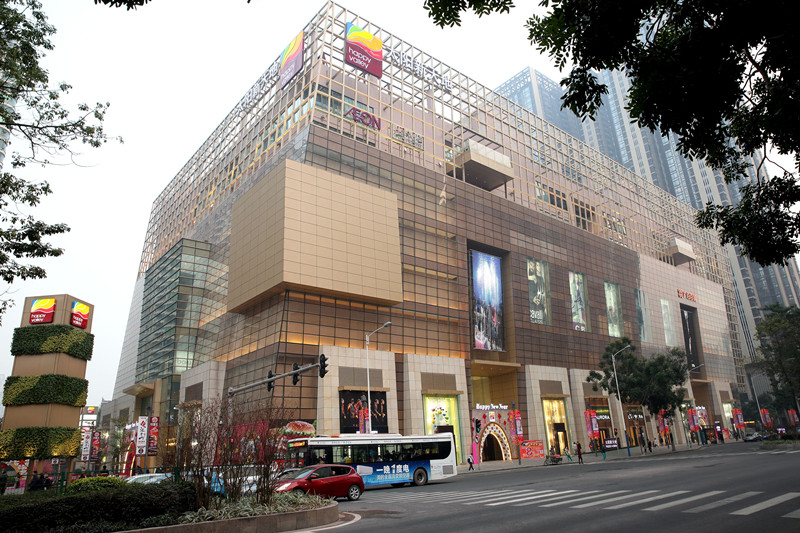

Project Case

shopping-mall-cladding-wall-solution shopping-store-aluminum-veneer

广州太阳新天地 (36)_副本
