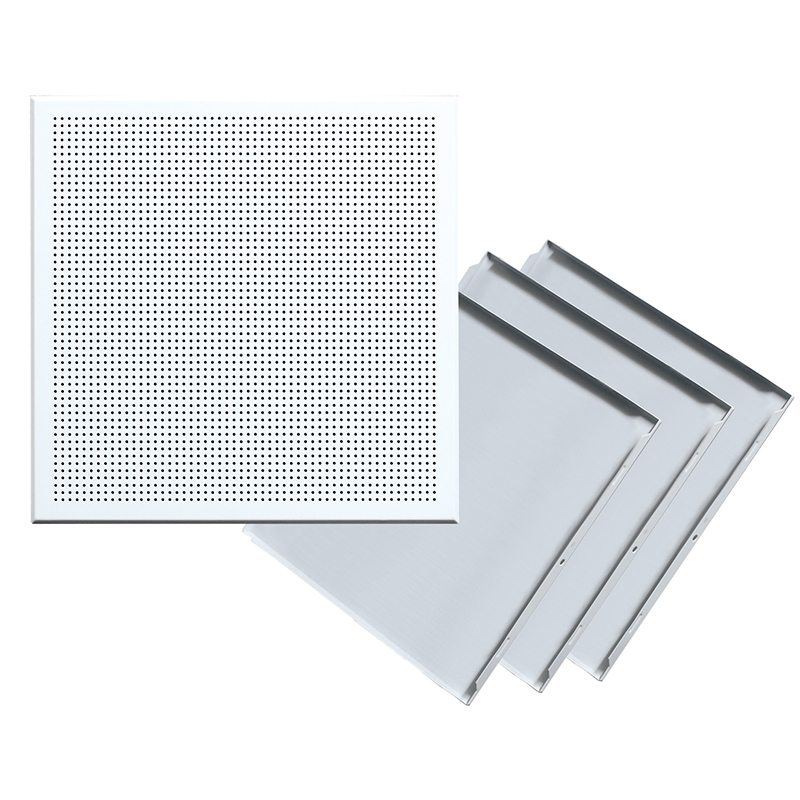

Aluminum Ceiling Tiles For Hospital Corridor

place of origin China
brand name BAHE
function fire-proof, moisture-proof, sound-proof
features artistic ceiling, integrated ceiling, perforated ceiling
ceiling tile shape square
material metal ( aluminum, aluminum alloy )
surface treatment film coated, roll coated, powder coating
available size ( mm ) 300*300, 600*600, 800*800, 300*1200, 600*1200
payment term T/T
certification SGS Test, ISO, CE



SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Product Description

The ceiling of the hospital channel ceiling should consider the flatness of the ceiling ceiling, and it should be matched with fire and light. Finally, it can punch the sound absorption effect.
The hospital passage is long, and the ceiling system needs to consider the maintenance of the line pipe and equipment. The ceiling ceiling system with strong detachability and convenient installation and maintenance is preferred.

Common 600 × 600mm, 600 × 1200mm, 400 × 1200mm, a variety of specifications can be used in combination, the structure can be selected from  lay in ceiling tiles and clip-in ceiling tiles.

  1. light weight, high strength;
  2. beautiful appearance, and various colors for choice;
  3. multiple accessibility options;
  4. easy & fast to install;
  5. shock resistant, water-proof, fire-proof, anti-corrosion, anti-fouling;
  6. clear edges and minimized gaps between tiles greatly improve aesthetic effects.
item name Aluminum Ceiling Tiles For Hospital Corridor
size 600 * 600 mm, 300 * 1200 mm, 600 * 1200 mm
thickness 0.5 ~ 1.2 mm
material aluminum 1100, aluminum alloy 3003
processing punching perforated
coating powder coating, PE coating ( 10 years guarantee )
certification ISO 9001, CE, SGS Test

aluminum-lay-in-ceiling-details
Installation Structure

lay-in-aluminum-ceiling-tiles-installation-structure

1 M6 threal rod 5 T-type main keel
2 38 mm main channel 6 T-vice keel
3 38 mm hanger main channel 7 T keel hanging pieces
4 M6 expansion screw 8 L angle

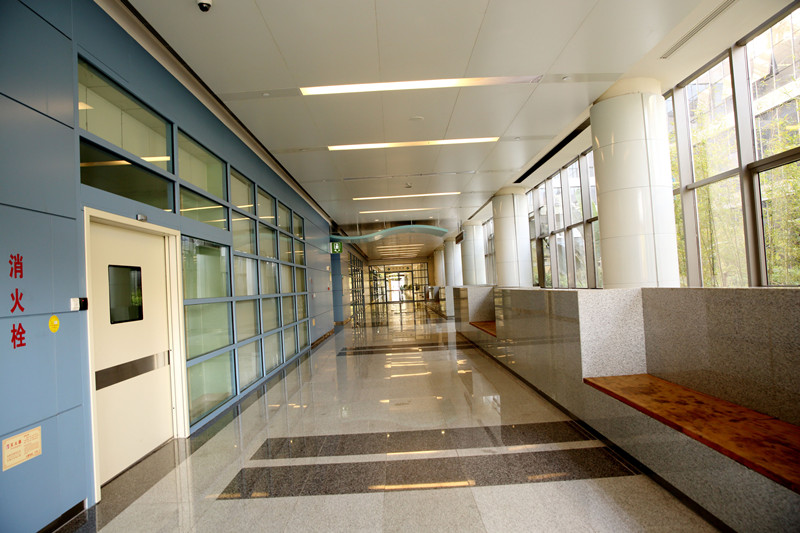

Project Case

888A0838

IMG_1824
